Tree View

Tree view component for Universal Dashboard.
New-UDTreeView allows you to create a tree of items and, optionally, dynamically expand the list when clicked.

Basic Tree View

Create a basic tree view by using the New-UDTreeNode cmdlet.
New-UDTreeView -Node {
New-UDTreeNode -Name 'Level 1' -Children {
New-UDTreeNode -Name 'Level 2 - Item 1'
New-UDTreeNode -Name 'Level 2 - Item 2'
New-UDTreeNode -Name 'Level 2 - Item 3' -Children {
New-UDTreeNode -Name 'Level 3'
}
}
}

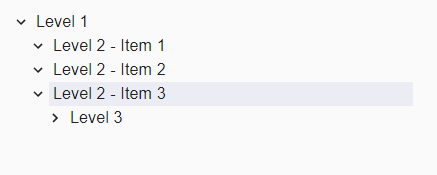

Basic Tree View

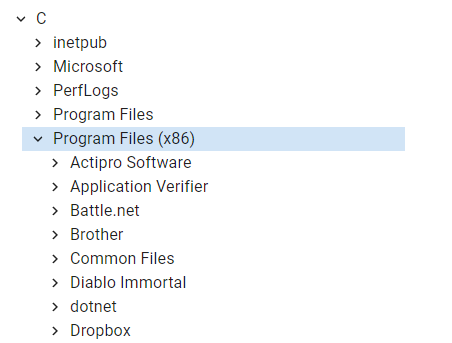

Dynamic Tree View

Dynamic tree views allow you to run PowerShell whenever a node is clicked. You can then return a list of nodes that should be rendered underneath the clicked node. You can also take other actions such as opening a modal or showing a toast.
New-UDDashboard -Title 'File System' -Content {
Get-PSDrive -PSProvider 'FileSystem' | ForEach-Object {
New-UDTreeView -Node { New-UDTreeNode -Name $_.Name -Id "$($_.Name):\" } -OnNodeClicked {
Get-ChildItem $EventData.Id | ForEach-Object {
New-UDTreeNode -Name $_.Name -Id $_.FullName -Leaf:$(-not $_.PSIsContainer)
}
}
}
}

API
